ESAB updates online weld tool

March 30, 2020
Quick Weld Productivity Analyzer provides easy-to-use cost calculator, interactive PDF reports

ESAB Welding & Cutting Products recently updated its Quick Weld Productivity Analyzer, which is an easy-to-use calculator for total weld cost analysis.

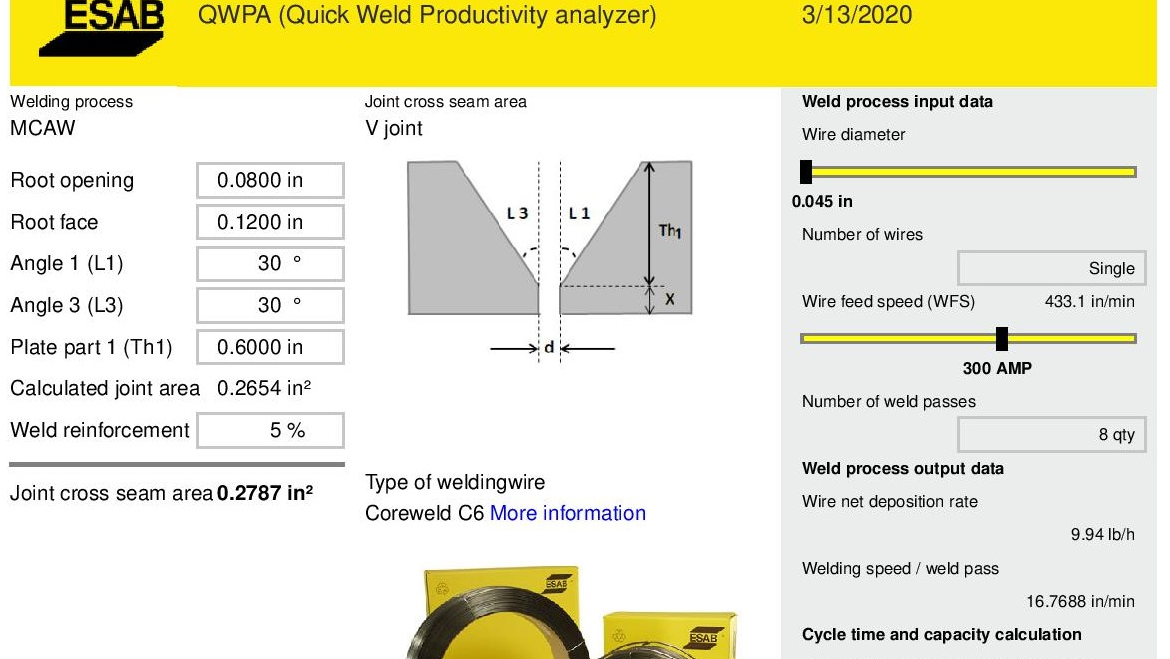

The analyzer tool, available at, also allows users to generate a PDF report, which includes a QR Code they can scan with a mobile phone that takes them back to their original calculation and input variables. Users then can adjust the variables to create alternative calculations and generate a new report.

The updated calculator includes more filler metal selections for the North American market. Globally, improved links from the QWPA only present filler metals and welding equipment that are available in the country of origin, ESAB said.

“The updated QWPA interface improves the user experience, while the ability to retrieve and edit calculations saves time and eliminates the hassle of re-entering variables,” said Dick Skarin, ESAB’s global value added engineering manager.

ESAB’s value added engineering team developed the QWPA so fabricators can make decisions based on factual data collected at their shop, the company said. The online tool is a subset of the comprehensive assessment tools offered by ESAB to help customers increase overall productivity. The QWPA produces calculations for:

  • Net deposition rate and welding speed per pass after selecting weld process and inputting data, (wire/electrode type, diameter, parameters, joint configuration, joint cross seam area, joint length, number of passes).
  • Weld operation time calculation. A sliding scale for arc-on time/operating factor calculates weld metal weight in pounds per foot, cycle time per product and energy consumption.
  • Total production cost per foot weld or cost per product based on production costs for consumables, energy and labor cost.

For more information, visit or call 1-800-ESAB-123.
