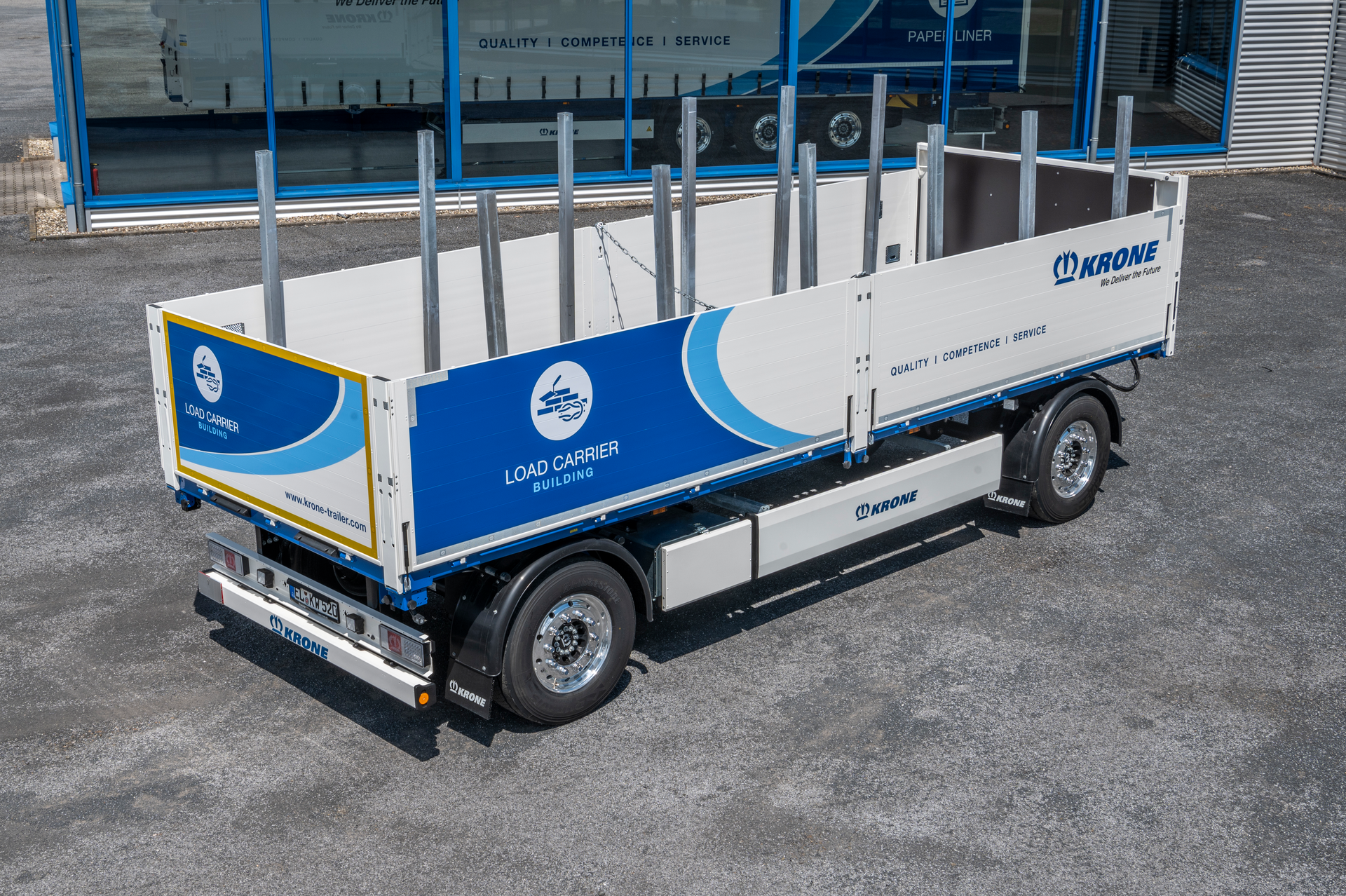

With the two-axle trailer "Load Carrier Building," Krone offers a flexibly configurable vehicle concept specially tailored to the requirements of the construction industry.
The trailer, perfect for transporting a wide variety of building materials, offers internal lengths of 6.5 meters, 6.9 meters, 7.1 meters or 7.3 meters, depending on requirements.
Both the Kinnegrip stanchions and the side and rear walls can be easily folded down and removed to allow completely free side loading. The solid workmanship, the stable equipment and the numerous quality components ensure minimum life cycle costs. In the latest generation, the Load Carriers have even greater torsional stability with a lower dead weight.
The sturdy, 1,000 mm high drop sides are fitted as standard with continuous tie rods that extend all the way to the hinge blocks. This provides additional stability and safety. At the front right and rear left, the side walls are each equipped with two recessed folding steps and thus offer safe access to the loading area.
The forklift collision protection integrated into the outer frame prevents damage to the folded-down dropside during loading and unloading operations. The operation of the drop sides can be facilitated by the optionally available drop side lifting aid. This lifting aid is gas-spring assisted and can also be retrofitted for the new model series.
In order to achieve an optimal loading width from the rear or from the side, the corner stanchions can be mounted at the rear transversely to the direction of travel (standard) or alternatively at the side longitudinally to the direction of travel. Six sets of stanchion pockets are optionally available, which are recessed in the outer frame as well as in the central Multi Rail lashing rail.
The bulkhead is available in either 1,200 mm or 1,600 mm height. Tensioning chains are available as an optional extra to prevent the body from unhinging when carrying heavy loads.
For plenty of additional storage space, the Load Carrier Construction Material Transport can be equipped with pallet and storage boxes in different sizes, all of which meet the criteria for side impact protection.
