SnowEx HDV plows push limitations aside

Oct. 5, 2016

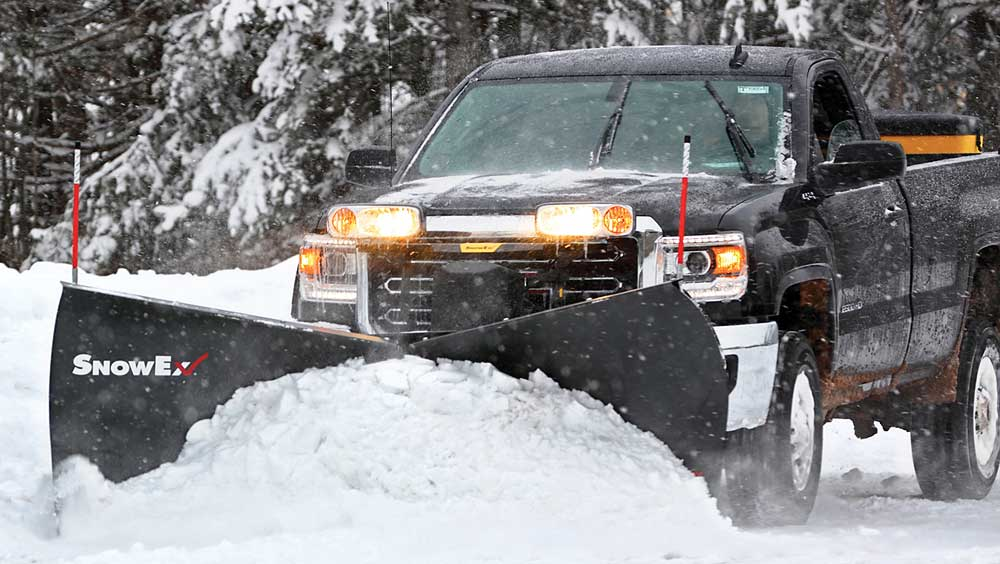

The new SnowEx HDV heavy-duty V-plows are built with groundbreaking new features.

The new SnowEx HDV heavy-duty V-plows are built with groundbreaking new features. From intuitive performance characteristics to rugged construction, the plows are powerfully engineered to break new trails and designed with the versatility required to take on different worksites.

Available in either powdercoated mild steel or stainless steel, and blade widths of 8'-6" or 9'-6", the HDV plows have aggressively flared moldboards reinforced by two angled power ribs to stand up to difficult snow loads. High flared wings throw snow at a high and wide angle, while an integrated snow catcher keeps snow from spilling over the top.

The plows have double-acting angle cylinders that push and pull the wings forward and back even under the heaviest snow loads, and can also hold the wings firmly in place for optimal back dragging. A large, 1.25-inch center pin adds toughness where it’s needed most, and it is ideally positioned to make the plow completely flat when in straight blade mode, enhancing snow rolling capability.

A responsive direct lift system delivers fast reaction time to quickly reposition the plow. The system includes a massive cylinder that provides a wide range of motion, impressive lifting power, and high stacking performance.

Whether the plow is in scoop, angle, or straight blade position, an independent trip edge protects plow, truck, and operator when encountering obstacles. Because only the edge trips, users can keep moving without losing a load of snow.

The Automatixx power-assisted attachment system provides quick and easy plow hook-up. This system includes self-aligning, removable receiver brackets that provide more ground clearance when setting up. Automatixx allows everything to be hooked up from one side of the truck.

Users can choose between the Power Grip hand-held control with backlit buttons or a compact joystick control. The plow can be angled with one touch of a button. Both controls feature power “on” and float LED lights and are compatible with SnowEx Fleet Flex technology, an electrical system that provides complete fleet interchangeability between other SnowEx plows.

A standard poly cover protects hydraulic components while allowing easy access. To match specific applications, SnowEx offers a variety of accessories, including wings, shoes, back drag edges, thicker cutting edges, and deflectors.
